Available in 4 different models:
– SonoEye P2 Linear Array indicated for Small Organ, Musculoskeletal (MSK), Nerve, Lung, EM, Vascular.
– SonoEye P3 Phased Array indicated for Abdominal, Cardiac, Lung, EM.
– SonoEye P5 Convex indicated for Abdominal, OB/GYN, Urology, Lung, FAST, EM.
– SonoEye P6 Micro Convex indicated for Abdominal, Cardiac, Urology, pediatric, OB/GYN and small parts.
App

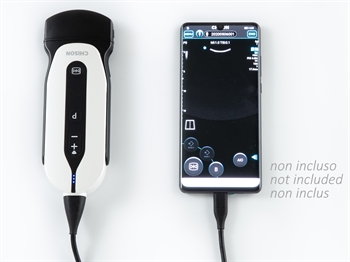

SonoEye works with SonoEye App for Human or Vet, free to download on www.chisonsonoeye.com
Human and Vet use
All SonoEye probes can be used on human or animals based on selected App.
Supplied with carrying case and manual (GB, IT).
Cable length 3m.
Programmable buttons for customized functions: gain, depth, focus, freeze, save, …..
Technical Specifications
COMPATIBILITY
Smart Phone: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pad: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

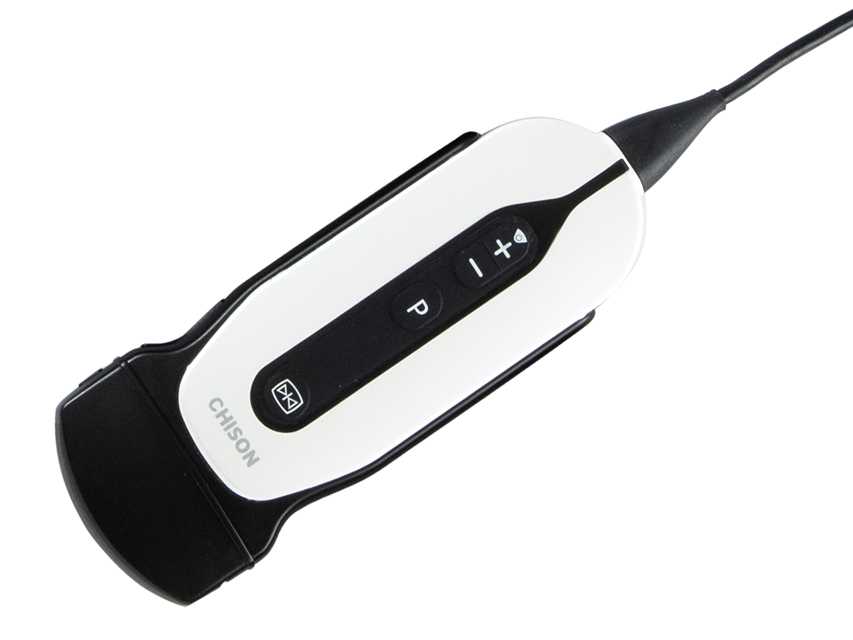

Probe Type: Convex
Central frequency: 3.5 MHz
Frequency Range: 3.0-5.0 MHz
Scanning Depth: 3.8-37.3 cm
Footprint (Contact area of the probe to patient): R50 (56.98×12.5 mm)
FOV: 59 degree
Doppler: Support Mode: B+C, B/M, C mode, PW mode
Image Optimal: AI O (All others such as compund, i-IMAG E etc set by AI O)
Dimensions mm: 64x172x24
Weight without cable: 143 g
