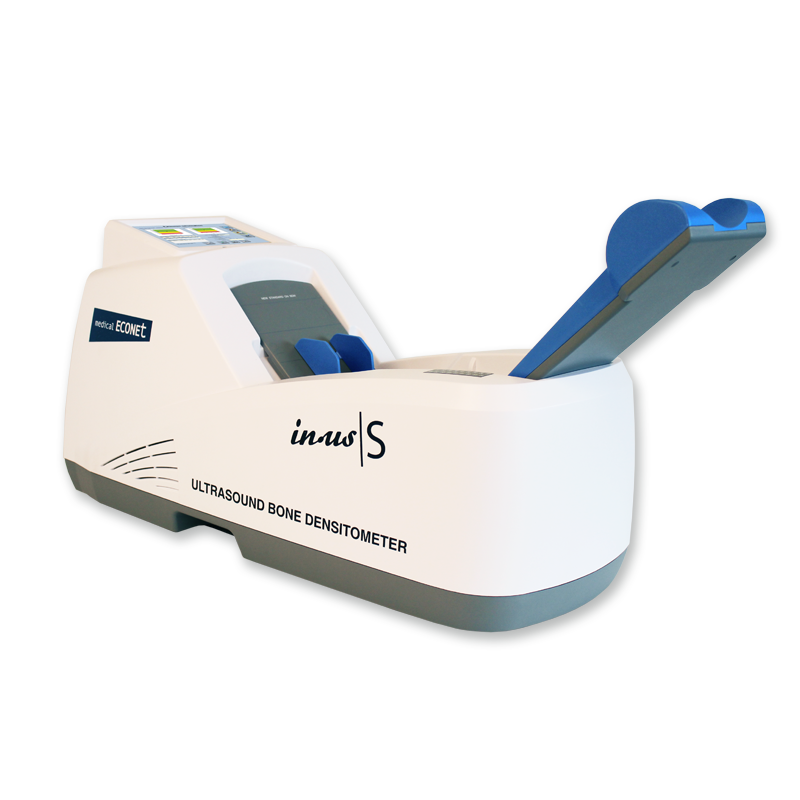

Ultrasonic bone density meter
with 6.4″ touchscreen and integrated PC
Quick and easy measurement of the bone density of the Calcaneus to estimate the risk of fracture
Easy-to-use device thanks to intuitive software and integrated PC
Measures the SOS (sound speed) as well as the BUA (broadband attenuation) and calculates
from it the BQI (bone quality index)
Automatic adaptation of gelpads for optimal foot positioning
Fast measurement in just 15 seconds
Storage of 10,000 patient data
USB port for optional color printers for A4 reporting
Connection for external VGA monitor
Technical details:
Dimensions: 32 x 62 x 30 cm
Weight: 15 kg
Probe spacing: 25 mm – 100 mm
Printer: integrated thermal printer
Connections: 2 x USB, VGA, PS2, mains connection
Mains voltage: AC 220V – 240V, 50/60 Hz
